Rubber Oil Seals

Mechanical Seal Spares

Carbon Graphite Silicon Carbide Tungsten Carbide Industrial Ceramic Teflon & Ptfe O-Rings & Gaskets Rubber Oil Seals Hardware Products

The sealing lip maintains light pressure against the rotating shaft, forming a barrier that retains oil inside the housing and blocks contaminants outside. The garter spring helps maintain contact over time despite shaft wear or vibration.

Materials Used
  • Nitrile Rubber (NBR): General-purpose, resistant to oil and grease.
  • Viton (FKM): High-temperature and chemical resistance.
  • Silicone: Excellent low and high temperature performance.
  • EPDM: Good for water and steam sealing, but not ideal for oil.
Applications
  • Automotive engines and gearboxes
  • Industrial pumps and motors
  • Agricultural machinery
  • Compressors and gear drives
  • Hydraulic systems

Hydraulic Seals

Hydraulic seals are designed for high pressure applications and are utilized in light, medium, and heavy-duty hydraulic cylinders across various industries.

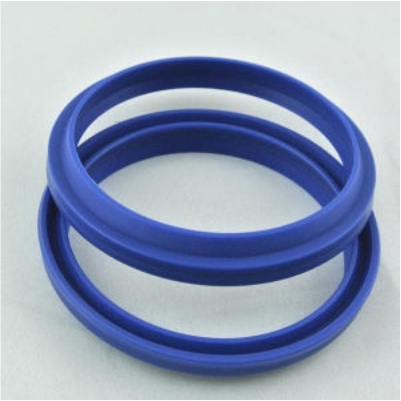

Piston Seals

Piston seals are dynamic seals that function in a single or double acting reciprocating motion. They are installed on piston heads, allowing movement within the barrel or bore of a hydraulic system.

Rod Seals

Hydraulic rod seals are static seals placed in glands or housings, designed to prevent leakage around the reciprocating rods of hydraulic cylinders.

Symmetrical Seals

Hydraulic symmetrical seals function as either piston seals or rod seals because of their symmetrical design.

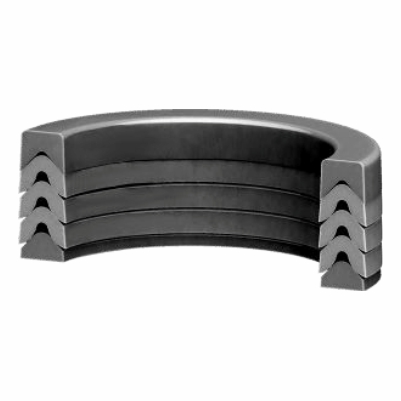

Vee-Packs

Hydraulic symmetrical seals function as either piston seals or rod seals because of their symmetrical design.

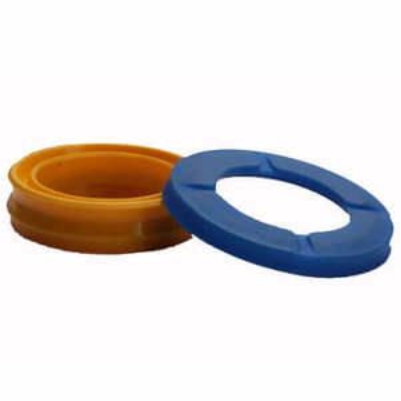

Wiper Seals

Wiper seals are utilized in glands to prevent dust particles from entering the hydraulic cylinder. They effectively remove dust and dirt that accumulates on the rod, thereby preventing contamination of the hydraulic oil.

Wiper Seals

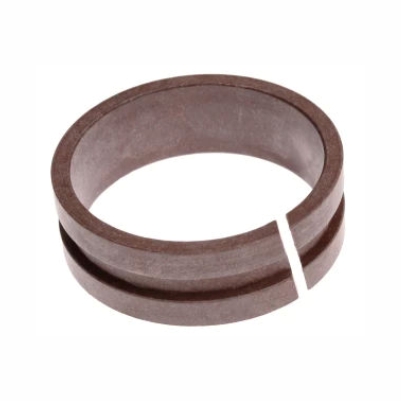

Guide rings or wear rings are utilized to direct the rods and pistons, thereby preventing damage.

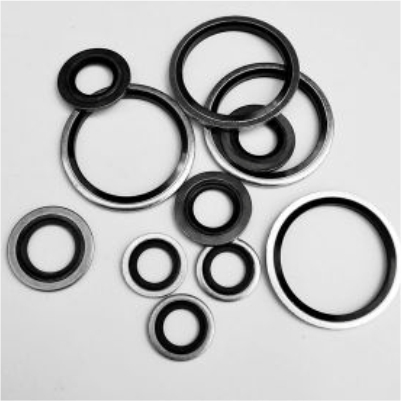

Bonded Seals

Bonded seals are sealing components utilized in the bolt threads for face sealing.

Pneumatic Seals

Pneumatic seals are utilized in cylinders with either low or high air pressure across various industrial applications.

Piston Seals

Pneumatic piston seals are dynamic seals that function through single or double acting reciprocating motion. They are installed on piston heads, facilitating movement within the barrel or bore of a pneumatic cylinder.

Rod Seals

Pneumatic rod seals are static seals placed in glands or housings to effectively seal the reciprocating rods of pneumatic cylinders.

Symmetrical Seals

Pneumatic symmetrical seals are utilized as either piston seals or rod seals because of their symmetrical design.

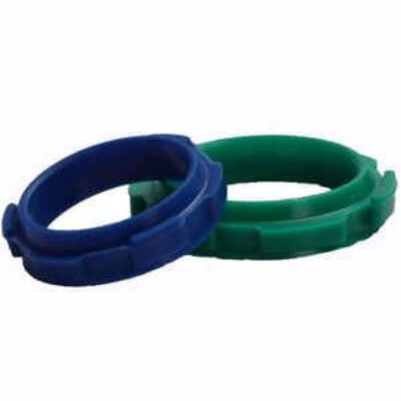

Cushion Seals

Pneumatic Cushion seals are used as damping seal in peumatic cylinder.

Wiper Seals

Wiper seals are installed in glands to prevent dust particles from entering the cylinder, effectively wiping away any dust or dirt that accumulates on the rod.

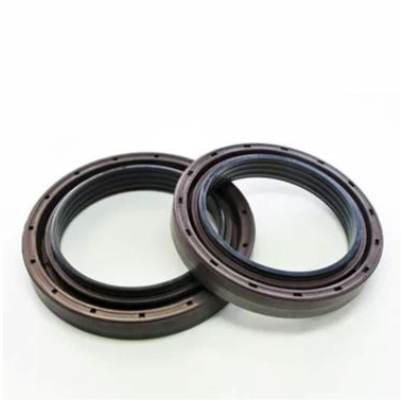

Rotary Shaft Seals

Rotary seals function as sealing components in rotating machinery such as gearboxes, pumps, and motors. They help maintain lubrication in bearings and prevent dust intrusion from external sources.

Fabric Seals

Fabric seals are adaptable rotary seals made from a cotton fabricreinforced body, featuring a spring-loaded rubber sealing lip.

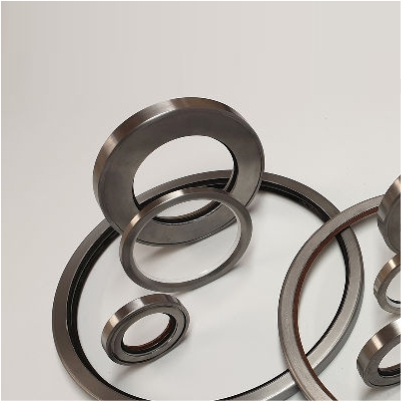

Heavy Duty Seals

Heavy-duty seals feature a metal body designed with a springloaded rubber sealing lip, primarily used for robust rotary applications in steel, cement, and power plants.

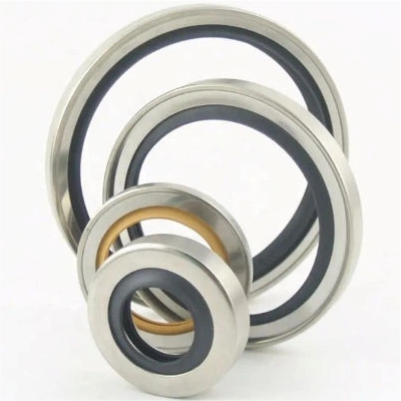

High Pressure Rotary Seals

High-pressure rotary seals can endure demanding conditions in applications like hydraulic pumps, motors, and power steering systems.

External Sealing or OD Sealing Rotary Seals

External sealing or OD sealing rotary seals are used for applications where the shafts remain stationary while the housing rotates.

Teflon Lip Seals

Teflon lip seals are produced using different PTFE blend materials suitable for high-temperature and high-speed applications, primarily in the chemical and food industries.

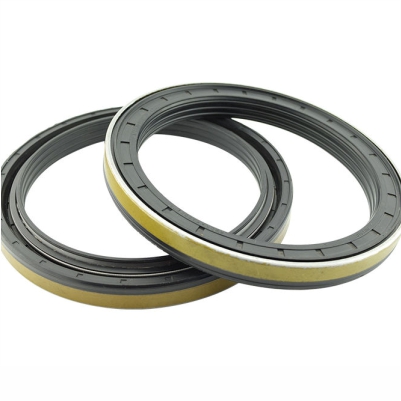

Cassette Seals

Cassette seals provide reliable sealing performance in challenging applications. Designed for harsh conditions, they function continuously while facing higher levels of dust, moisture, and debris compared to on-road vehicles. Typically, they consist of a sleeve, a sealing lip with a spring, and multiple anti-dust lips in a labyrinth system to guard against contamination, reducing shaft finish needs and preventing grooving.

Customised Seals

Custom seals are designed specifically to meet customer application requirements without requiring significant alterations to the existing equipment setup.

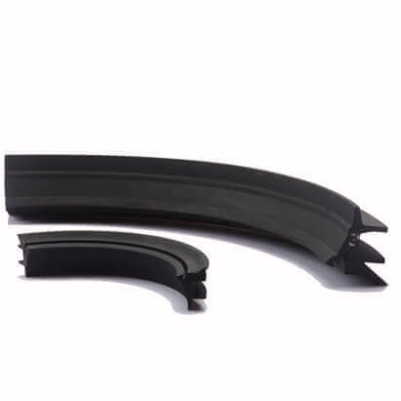

Neck Seals

Neck seals are utilized to secure the bearing within the backup roll chock.

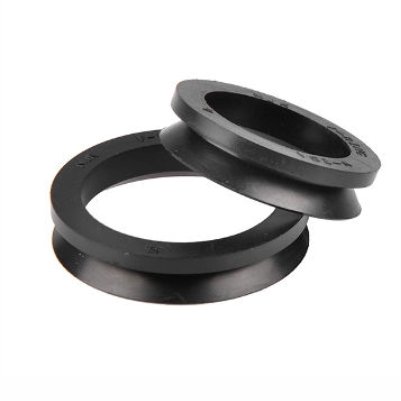

V-Rings

V-Rings serve as dust seals or guards to prevent the ingress of water or coolant into the bearing housing.
